RES-190-F
A-gen
392690
| Package: | |
|---|---|
| Quantity: | |
Product Description

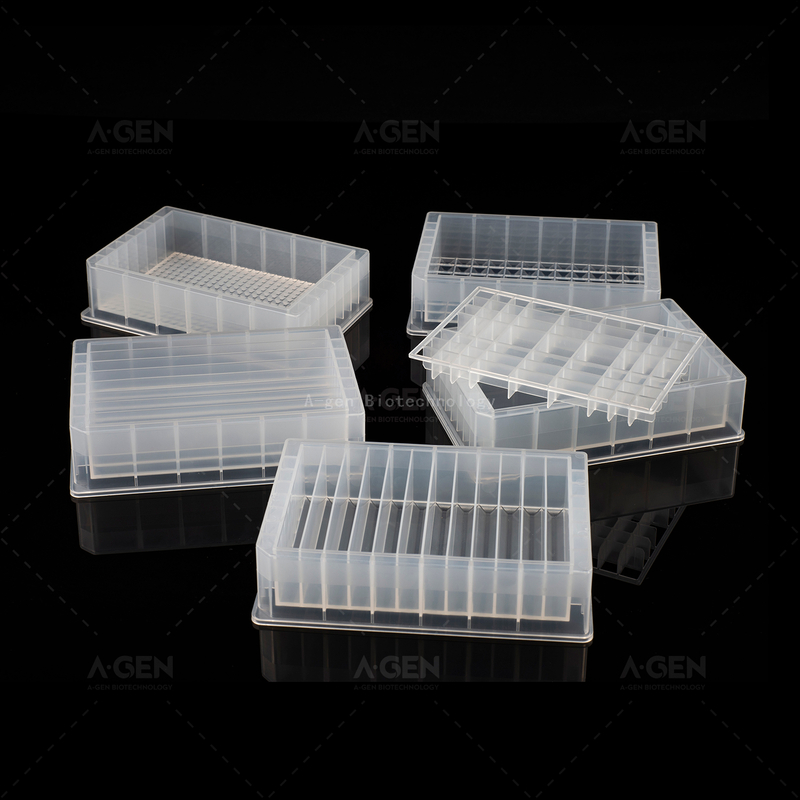

Flat bottom reservoir 190ml
| Product features |
| Made of USP Class VI polypropylene (PP) raw material, suitable for storage of most organic solutions, acidic and alkaline solutions, etc. |
| Complete variety, available in five capacity specifications: 15ml, 22ml, 185ml, 190ml and 195ml |
| The product size complies with SBS standards and is suitable for arranging guns and automated instruments. |
| Flat bottom, 96 and 384-hole liquid storage tanks are equipped with matching anti-wave plates, which can effectively avoid the loss of liquid during operation. |
| The low skirt design (31mm) fully considers the use of small-volume tips in automated high-throughput instruments due to small pipetting volumes, making the product suitable for 10, 30, 50, 100, and 125ul drippers. |
| During the automated pipetting process, due to the surface tension of the liquid in the flat-bottomed container, it may be impossible to extract liquid locally. The liquid storage tank can overcome the surface tension of the liquid and reduce liquid residue and wall hanging. |
Full range of parameters
| A-GEN item number | Packaging | volume | name |
| reservoir | |||
| RES-190-F | 5 boards/bag, 10 bags/carton | 190mL | flat bottom reservoir |
| RES-180-8MW | 5 boards/bag, 10 bags/carton | 22mL | 8 liquid reservoirs |
| RES-180-12MW | 5 boards/bag, 10 bags/carton | 15mL | 12 liquid reservoirs |
| RES-195-96SW | 5 boards/bag, 10 bags/carton | 195mL | 96 liquid reservoirs |
| RES-185-384SW | 5 boards/bag, 10 bags/carton | 185mL | 384 liquid reservoirs |
Dimensional drawing
