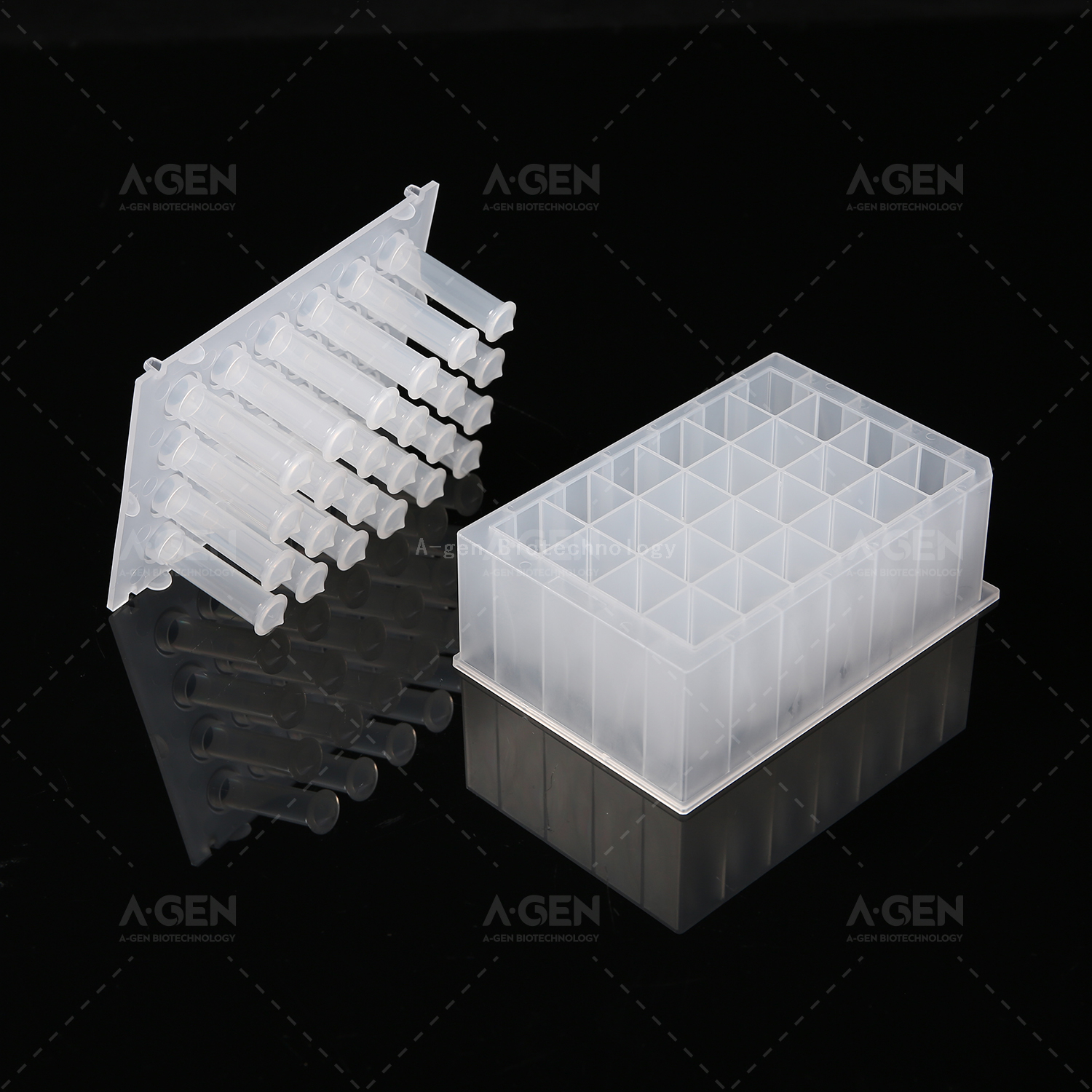

10ml 24 Square-Well Extraction Plate Conical Bottom

Polypropylene 24-well deep well rectangular plate. Pre-sterilized. Volume: 10mL: P-DW-10ML-24-C-S

Features Description
Name 24-Well Extraction Plate (Square Well, V-bottom)
Material Polypropylene
Color Frosted
Well number 24 Square-Well
Well shape Square Well
Bottom shape Conical V shape
Well Volume 10.0 mL
Well Identifier Alphabetical / figure sorting
Sterilization Optional
Lid Optional
Individual warp Optional
Count unit Plate
Qty 50 plates / case,
Sealing method Adhesive sealing film, Heat sealable film, Silicone sealing mat with plate
Relevant product 24 Square-Well Conical V-Bottom P-MT-24LV / P-15-SQV-24
  • P-10-SQV-24

  • A-Gen

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

Product Description

No. Product Features
1 Microplanes can be stored under subzero temperature from -40 to -80℃
2 Maximum sustainable centrifuge force 4000g
3 Autoclavable at 20Psi, 121℃ for 20 minutes.Great heating uniformity
4 Minimum residual liquid; low heavy metal content
5 Used high quality, imported PP material for high stability, ensuring no chemical reactions with test reagents. Compatible with DMSO and inert to water
6 Certified DNase/RNase and Pyrogen Free
7 Conformed to automatic instrument
8 Three options for plate sealing: adhesive seals, mat caps, and heat seals. No leakage.
9 Good flatness, can be transported for long distance after sealing by heat sealable film
10 Produced and packed in Class 100,000 clean workshop
11 Alphabetical sorting and cut angle mark for convenient tracking of samples
12 Each package has a separate article number/batch number identification, facilitating the quality tracking

High quality polypropylene (PP), good chemical resistance and heat-resistance;
With a good chemical compatibility, complete Board no bubble, no stripes, no spills, high mechanical strength,

solid bond Department;
Accommodate even larger working volumes,up to 10 mL or 15 mL storage volume per well;
Proteins and DNA will not adhere to PP, allowing for complete sample recovery.
Natural color makes it easy to locate the notch design.

Usage: Applicable to the identification system, HTS, master sampling and sample, mechanical sampling and automatically moved fluid system; Applicable to the biological field, such as PCR, RIA, EIA and cell culture, etc.;
Applicable to most polar organic solvents, acid and alkaline solutions, laboratory liquid storage.

A-Gen P-10-SQV-24 Extraction Plate configured with P-MT-24L/V 24-Well Tip Comb Magnet Set can be used for DNa RNa extraction by magnetic beads separation method. Pyramid-bottom eases sample retrieval and improves mixing within well by creating a sloshing effect rather than a vortex when agitated. Polypropylene construction offers a low binding surface to prevent samples from sticking to side walls.
