Evaluating Deep Well Plate Performance: Ensuring Consistency in Automated Workflows

In automated liquid handling, high-throughput screening, and molecular diagnostics, a deep well plate is far more than a basic storage vessel—it functions as a precision component within automated systems. Minor dimensional warpage or trace chemical leachables can cause robotic gripper errors, pipetting alignment failures, or false-negative test results.

This article examines the critical evaluation metrics for deep well plates, detailing how A-GEN addresses dimensional tolerance, material purity, and structural integrity for automated laboratory workflows.

1. Key Challenges in Automated Workflows

Selecting the right deep well plate directly impacts operational uptime and data reproducibility in automated environments. Laboratories frequently encounter three primary issues with substandard plates:

• Mechanical Incompatibility: Non-standard footprints or thermal deformation during manufacturing cause robotic arm pick-and-place failures and tip-to-well misalignments.

• Biological Interference: Chemical leachables from low-grade plastics can inhibit DNA polymerase activity, altering Ct values in quantitative PCR (qPCR).

• Cross-Contamination & Evaporation: Uneven top rims disrupt thermal sealing or adhesive mat application, leading to well-to-well leakage during high-speed shaking or centrifugation.

2. Structural Specifications & ANSI/SLAS Compliance

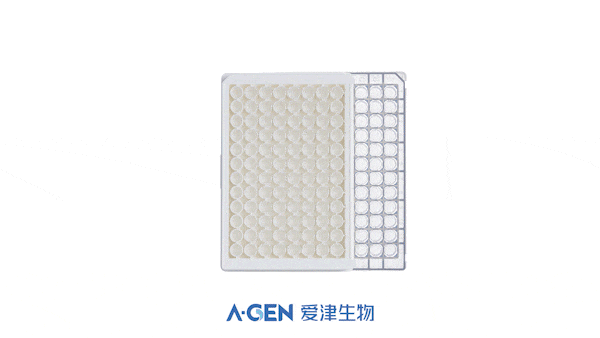

A-GEN deep well plates are engineered strictly according to ANSI/SLAS 1-2004 through 4-2004 standards, ensuring full compatibility with automated liquid handlers (e.g., Tecan, Hamilton, Beckman) and microplate readers.

Well Geometry & Bottom Profiles

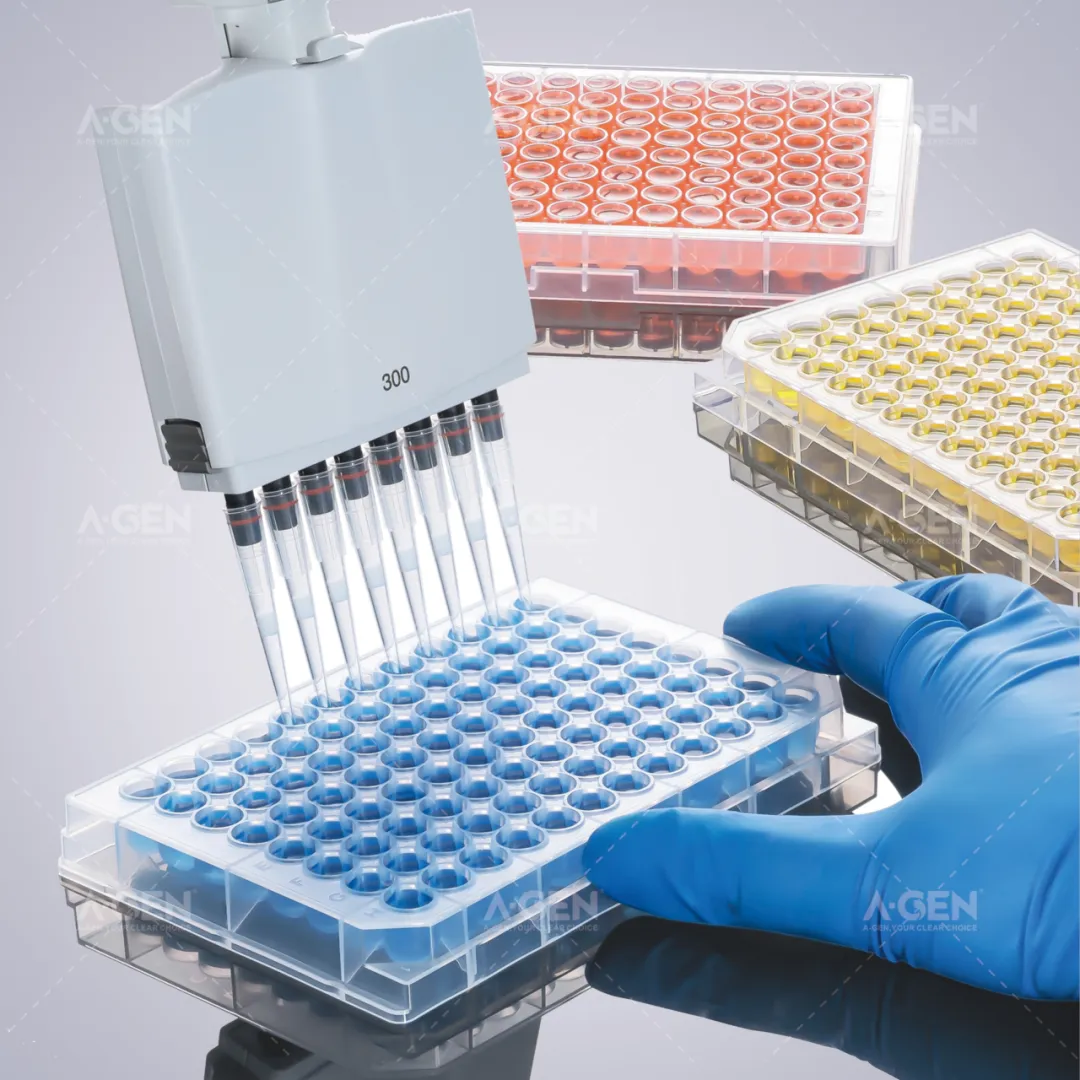

• Square Wells: Maximize volumetric capacity per well and feature tapered bottoms to minimize dead volume during liquid aspiration.

• Round Wells: Optimize fluid dynamics for smooth mixing and cell suspension applications.

• Bottom Designs: Available in U-bottom, V-bottom, flat, and diamond-shaped profiles. U-bottoms facilitate magnetic bead recovery, while V-bottoms allow maximum recovery of trace liquid volumes.

Color Options for Optical Compatibility

• Clear Plates: Offer high optical clarity for visual inspection and automated liquid level sensing.

• Black Plates: Minimize background fluorescence and light scatter, protecting light-sensitive compounds.

• White Plates: Enhance signal reflection for luminescence assays and automated imaging systems.

Format Availability

A-GEN provides diverse configurations including 24-well, 48-well, 84-well (strip-pluggable), 96-well, and 384-well deep well plates, supporting working volumes from micro-liter quantities up to 2.2 mL per well.

3. Manufacturing Rigor & Quality Control

Medical-Grade Polypropylene (PP)

A-GEN deep well plates are manufactured from high-purity medical-grade polypropylene, offering broad chemical resistance to solvents like DMSO, ethanol, and mild acids.

• Temperature Resistance: Withstands temperatures from -80°C to 121°C (autoclavable at 15 psi for 20 minutes).

• Centrifugation Stability: Rated for centrifugal forces up to 4,000 × g without structural cracking or deformation.

ISO Class 8 Cleanroom Production

All manufacturing occurs in an ISO Class 8 (Class 100,000) cleanroom utilizing fully automated injection molding and packaging systems. This hands-free process eliminates human contact and minimizes particulate contamination.

Lot-Certified Purity Standards

Every batch undergoes rigorous quality testing to ensure the following certifications:

• DNase, RNase, and Human DNA-Free

• Endotoxin/Pyrogen-Free (<0.06 EU/mL)

• PCR Inhibitor-Free (validated through qPCR amplification assays)

4. Primary Applications

• Automated Nucleic Acid Extraction: Serves as the standard processing plate for magnetic bead-based extraction and purification systems.

• Biobanking & Sample Management: Paired with heat seals or silicone sealing mats for long-term cryogenic storage of sera, plasma, and compound libraries.

• High-Throughput Cell & Bacterial Culture: Round-well formats support uniform gas exchange and agitation in shaker incubators.

5. Conclusion

Consistent performance in high-throughput workflows requires consumables manufactured to exact mechanical and biological specifications. By combining ANSI/SLAS compliant engineering, medical-grade materials, and batch-level quality control, A-GEN deep well plates deliver the reliability required for both research and industrial laboratory automation.
